Overview

The LKTOP 100W Avata 2 Battery Charging Hub (model AC341) is a two-way USB-C fast charger designed for the DJI Avata 2 Intelligent Flight Battery (BWX520-2150-14.76). It provides 100W high-power input to charge up to three batteries and can also work as a power supply via its USB‑C port when an Avata 2 battery is inserted. An LED screen and app control help monitor parameters and switch charging modes for efficient, safe operation.

Key Features

• 100W high-power charging; parallel charge 3 batteries in about 70 min.
• Two charging modes: Sequential Mode (first battery full in about 40 min) and Parallel Mode (3 batteries full in about 70 min).
• 2‑in‑1 design: charges drone batteries or powers devices (remote controller, action camera, phone) from an inserted Avata 2 battery via USB‑C output.
• LED screen plus app control to view charging status, select modes, and manage safety.
• USB‑C output profiles: 5V 3A, 9V 3A, 12V 3A, up to 36W max (power supply mode).
• Sixfold protection: over‑temperature, short‑circuit, over‑voltage, under‑voltage, over‑current, and over‑power.
• Thermal design with a heat dissipation port.
• Recommended power adapters: DJI 100W desktop charger; LKTOP 100W desktop/GaN multi‑port charger; LKTOP 100W or 130W car charger; LKTOP POWER K1.

Specifications

For presales or after‑sales support, please contact https://rcdrone.top/ or email [email protected].

What’s Included

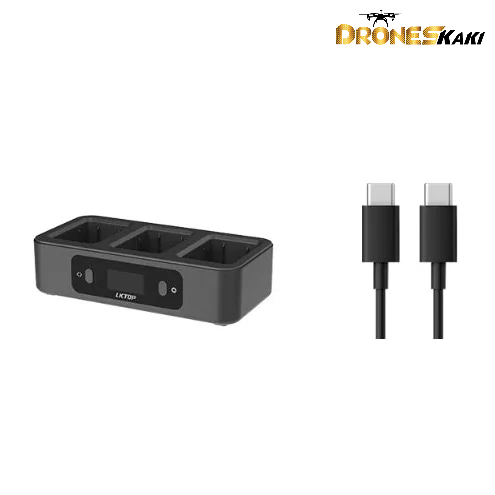

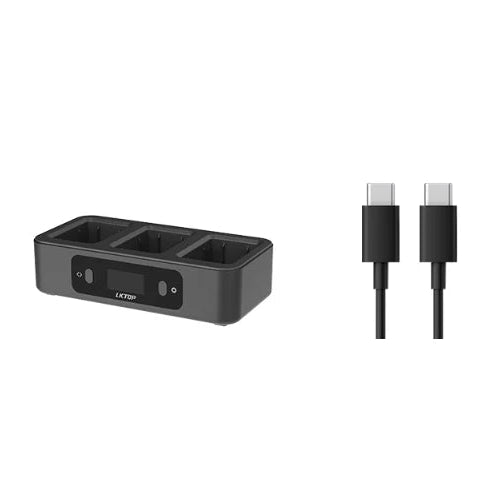

• LKTOP Avata 2 Two‑Way Charging Hub x1
• USB‑C to USB‑C cable (100W) x1
• User manual x1

Applications

• Fast charging for DJI Avata 2 Intelligent Flight Batteries at home or in‑car when paired with a 100W adapter.
• On‑the‑go power supply for USB‑C devices (remote controller, action camera, smartphone) using an inserted Avata 2 battery.
