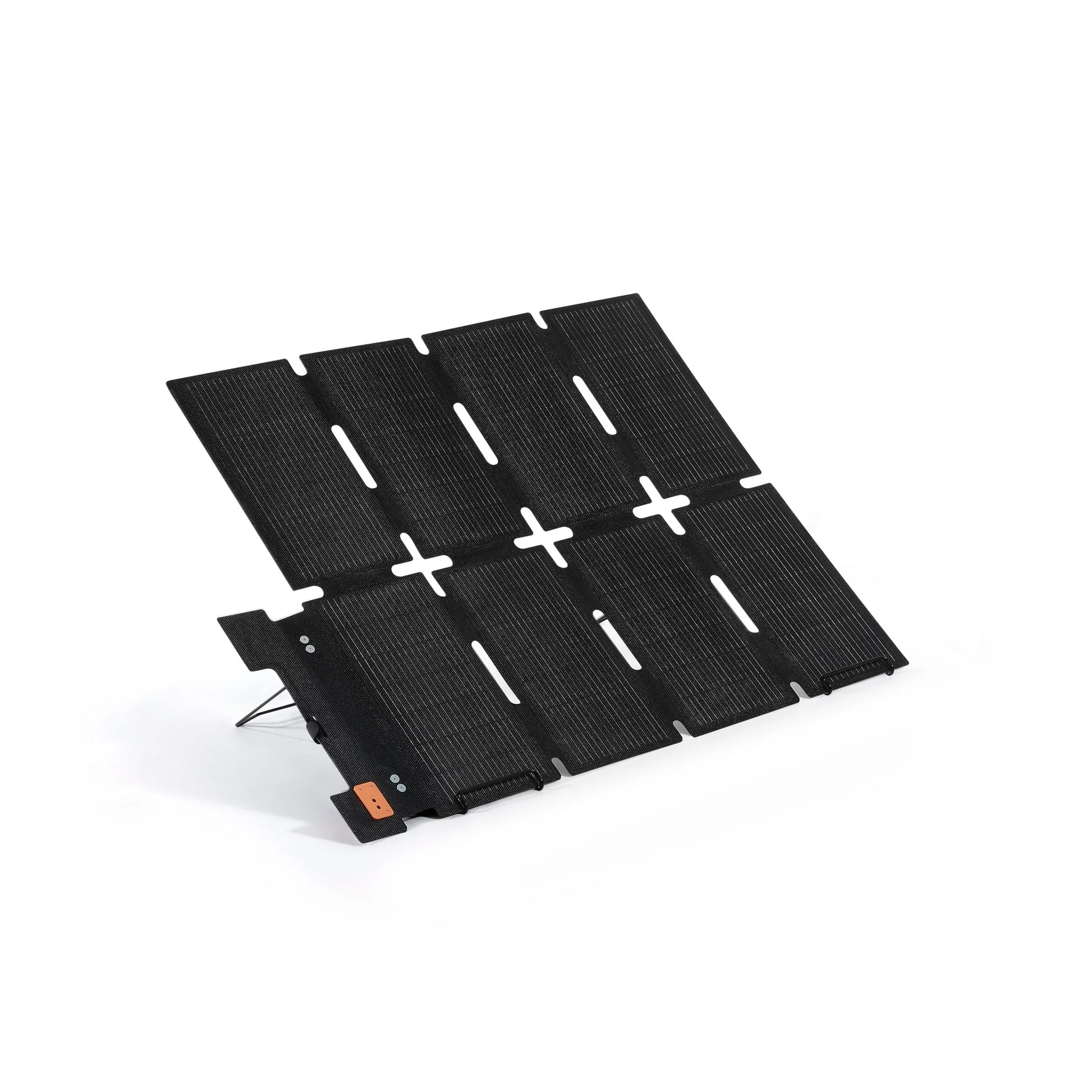

IBC Power 100W Foldable Solar Panel

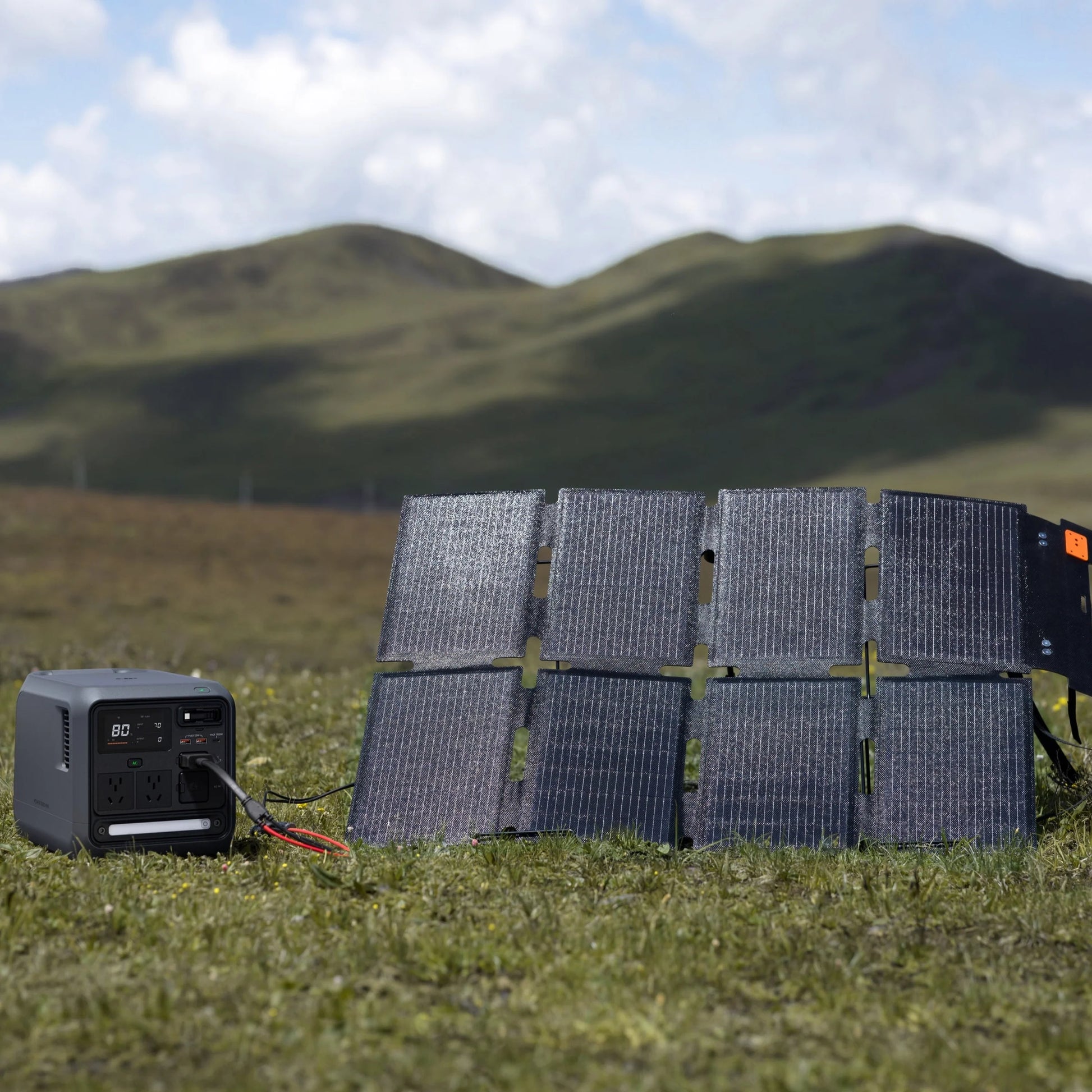

This ultra-portable 100-watt solar panel, when folded up, is about the size of a laptop, making it easy to carry and suitable for mobile use.

It adopts N-type Topcon high-efficiency solar cells, with a photoelectric conversion efficiency of up to 24.8%, demonstrating excellent energy efficiency.

IP67 dustproof and waterproof design, effectively resisting outdoor dust and rain.

The split bracket design allows for easy one-handed opening of the bracket, making installation convenient and effortless.

Tips:

Power supply and required accessories:

Connecting to DJI Power 1000 Mini:
Requires: DJI Power MC4 Solar Charging Cable

Connecting to DJI Power 2000 / 1000 V2 / 1000:
Requires pairing with: DJI Power 1.8kW Solar/Car Charger
Alternatively, use with: DJI Power Solar Panel Adapter Module (MPPT) + DJI Power MC4 to XT60 Solar Adapter Cable

Connecting to DJI Power 500:
Requires: DJI Power Solar Panel Adapter Module (MPPT) + DJI Power MC4 to XT60 Solar Adapter Cable
Alternatively, use with: DJI Power Car Charger to SDC Charging Cable (12V/24V) + DJI Power MC4 to XT60 Solar Adapter Cable

In the Box:

• Solar panel × 1
• Stand × 2

Specifications:

• Unfolded dimensions: 728 mm long, 1035 mm wide, 3.2 mm high.

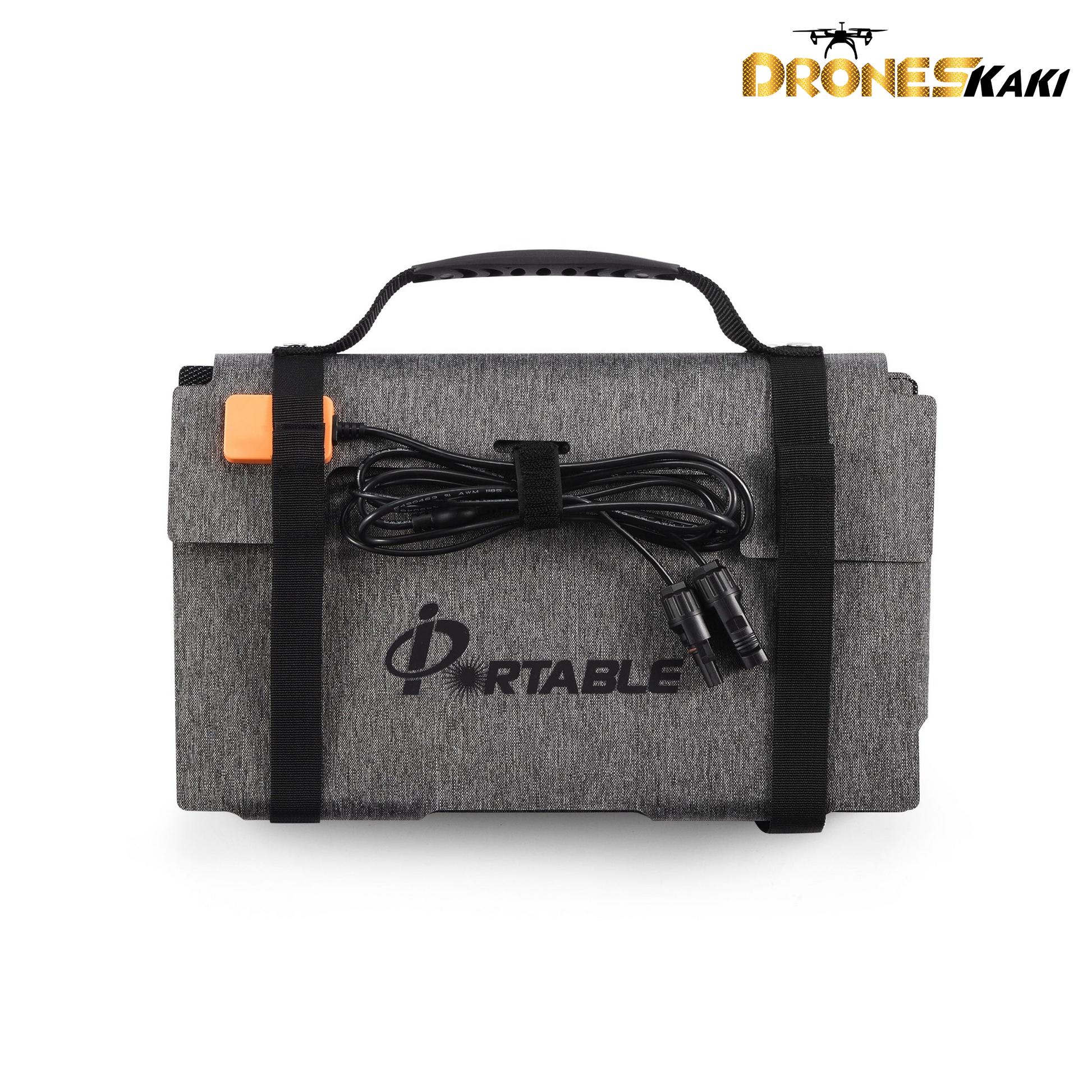

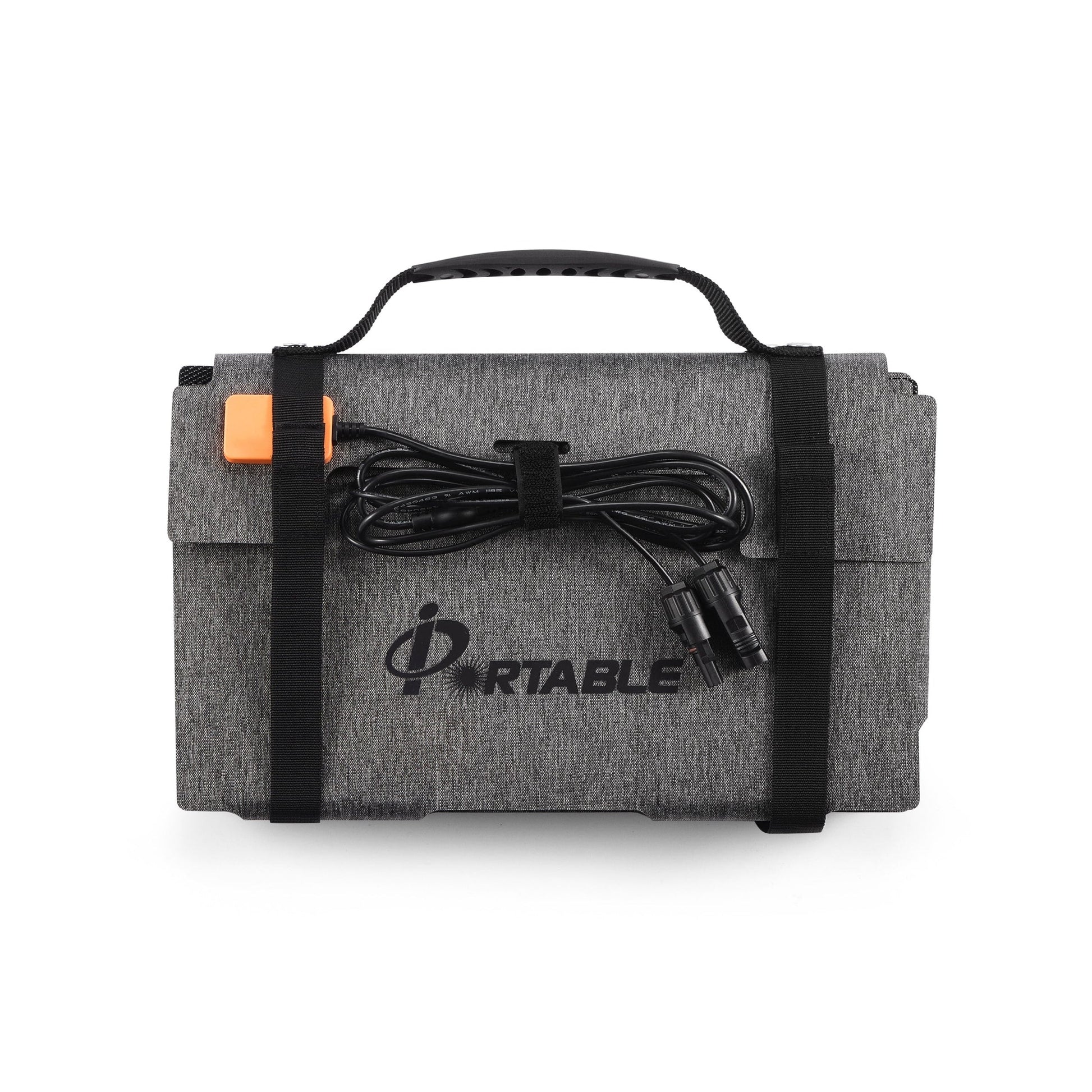

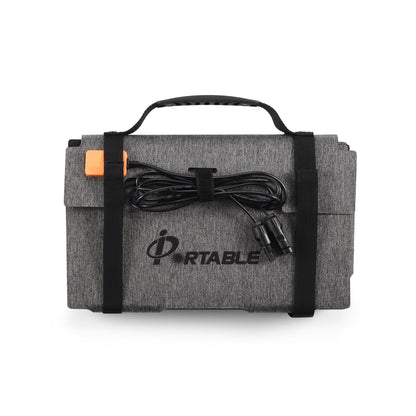

• Folded dimensions (excluding stand): Length 246 mm, Width 364 mm, Height 30 mm
• Weight: Approximately 3.19 kg
• Operating voltage: 18.1 volts
• Operating current: 5.5 A
• Open circuit voltage: 21.9 volts
• Short-circuit current: 5.9 A
• Operating ambient temperature: -18℃ to 70℃

Compatibility:

• DJI Power 1000 Mini
• DJI Power 2000
• DJI Power 1000 V2
• DJI Power 1000
• DJI Power 500
• DJI Power 1.8 kW Solar/Car Charger
