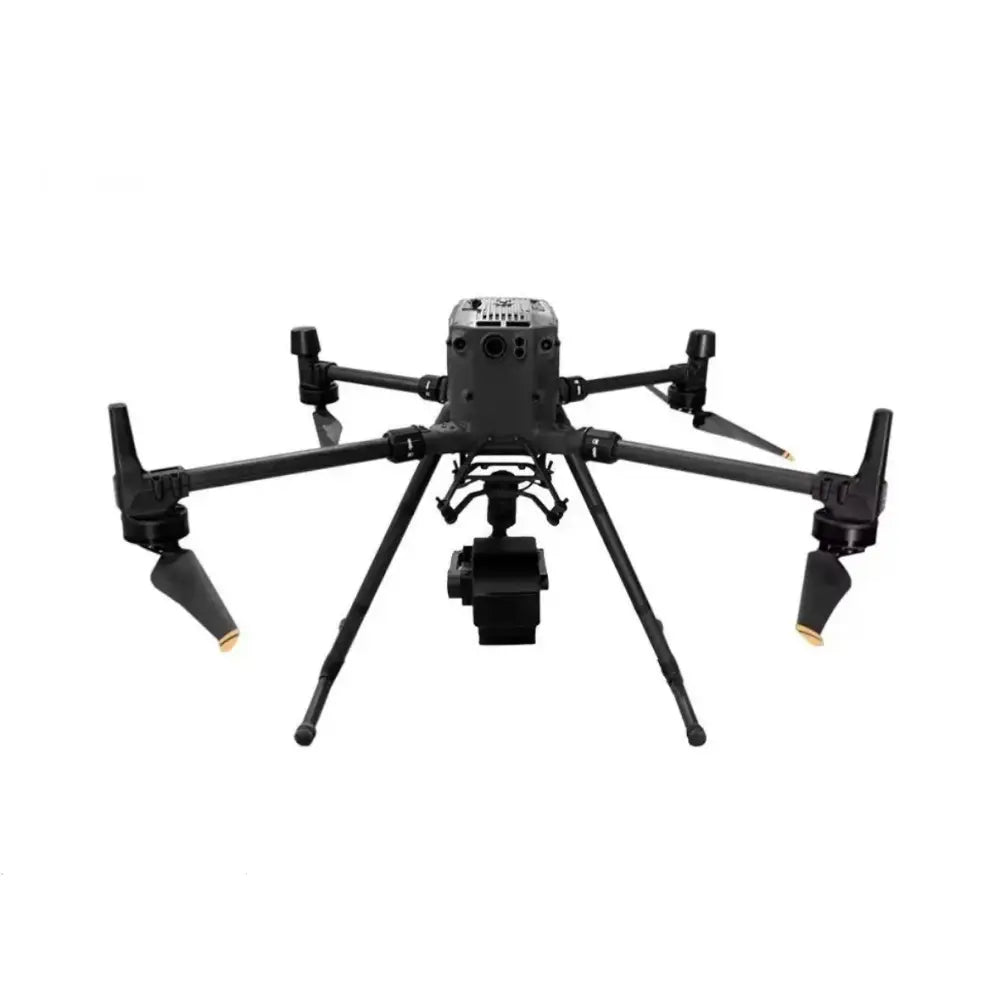

Hyper Spectral Camera FS-50/90

The FigSpec® FS-50 series is a new generation of unmanned multispectral cameras from Color Spectrum Technology Company, adapted to the DJI M350/M300RTK flight platform, with 30-180 spectral channels and 2K resolution. It can meet the application needs of precision agriculture, homeland security, disaster prevention and forestry monitoring, river and lake ecology, target identification and other industries.

The system has compact design and high spectral resolution of imaging spectrometer host. Complete machine composition: high stability PTZ, hyperspectral imager, large capacity storage system, wireless image system, GPS navigation system, ground receiving workstation and ground control system.

Product Features

• Ultra-high spectral channels: 30-180spectral channels (different models)
• 2K spatial resolution
• Global shutter, 12bit high precision sampling data
• Ground station real-time preview data acquisition
• DJI X-Port control and power supply, 512GSSD mass storage
• Dji M350/M300 RTK UAV customization, plug and play
• FIGSPEC UAV real-time flight control software, FIGSPEC Merge puzzle software, FIGSPEC Studion image analysis software

Spectral range: 400-1000nm
Number of spectral channels: 90 Per 10nm
Output a wavelength
Spectral resolution/halfwave width:3.5nm

Orchard Operations

Crop growth assessment
Coverage evaluation
Water quality analysis and monitoring
Water eutrophication monitoring
