DJI Ronin RavenEye Image Transmission System

Overview

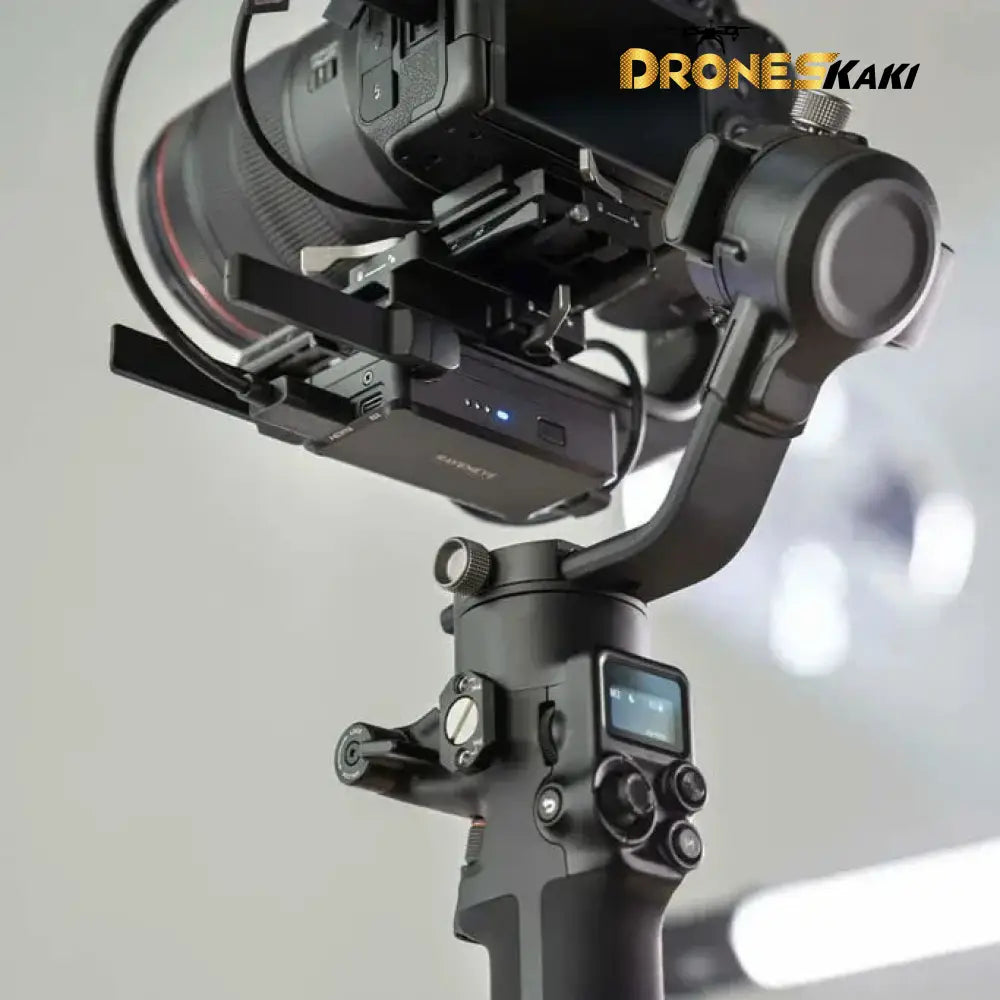

The DJI Ronin RavenEye Image Transmission System allows live camera view and enables ActiveTrack 3.0 on DJI RS 2, transmitting the camera live view directly on the touchscreen and Ronin app. When using DJI RSC 2, RavenEye enables remote control of the gimbal, monitoring, and ActiveTrack 3.0, but the built-in screen cannot be used to transmit the camera live view. The system mounts to the gimbal and connects to the camera via HDMI cable and to the smartphone via Wi-Fi. Please visit the Ronin Series Compatibility Search at dji.com to see supported camera models and functions.

Note: Ronin-S and Ronin-SC do not currently allow remote gimbal control or the use of ActiveTrack 3.0 via RavenEye.

In The Box

Image Transmitter × 1

Cold Shoe to 1/4''-20 Adapter × 1

USB-C Charging Cable (40 cm) × 1

USB-C Power Cable (20 cm) × 1

Mini-HDMI to HDMI Cable (20 cm) × 1

Mini-HDMI to Mini-HDMI Cable (20 cm) × 1

Mini-HDMI to Micro-HDMI Cable (20 cm) × 1

M4 Screw × 2

Allen Wrench (3 mm) × 1

Specifications

Working Frequency: 2.400-2.4835 GHz，5.725-5.850 GHz

Weight: 126 g

Dimensions: 82 mm x 63 mm x 24 mm

Transmission Power (EIRP):

2.400-2.4835 GHz:

＜25dBm (FCC)

＜20dBm (CE/SRRC/MIC)

5.725-5.850 GHz:

＜25dBm (FCC/SRRC)

＜14dBm(CE)

Compatibility

Ronin-S

Ronin-SC

DJI RS 2

DJI RSC 2
