DJI Power 500

DJI Power 500

Power Your World

Product Highlights

• Fully Charged in 70 Mins - Recharged to 80% in just 50 mins
• 1000W Max Output Power - Meets power requirements of common household appliances
• Supports Solar Charging
• Ultra-Quiet Operation
• Up to 5 Years of Warranty
• Dual USB-C Two-Way Ports (100W Max)
• Comprehensive Safety - LFP battery cell, 4000 cycles
• Fast Charges DJI Drones - DJI Power SDC super-fast charge

DJI 512Wh Portable Power Station

Power Supply/Recharging in Multiple Scenarios

Stable AC Output

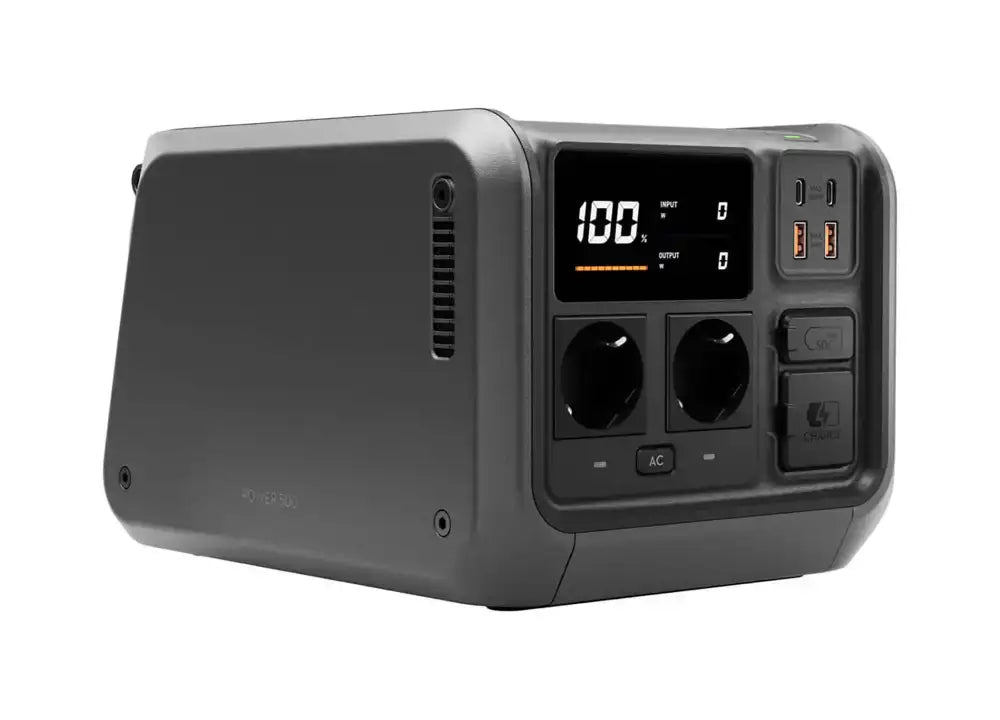

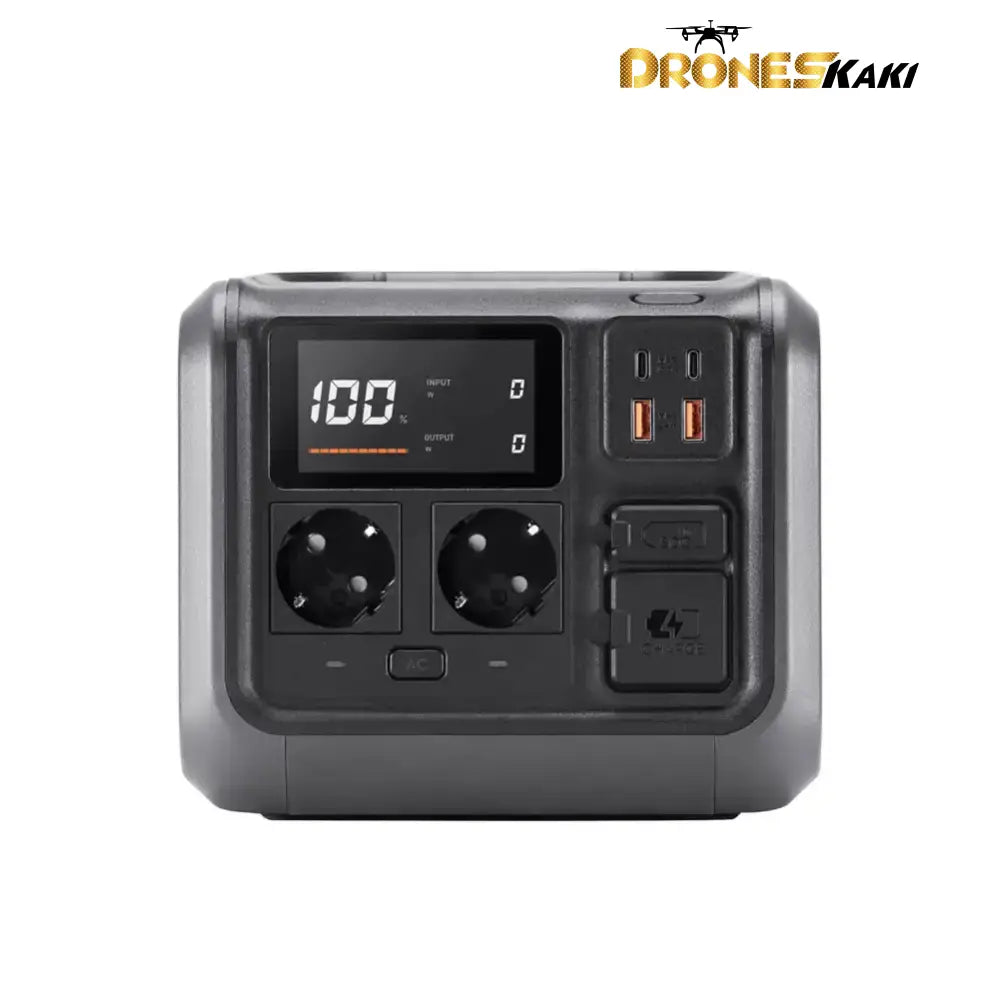

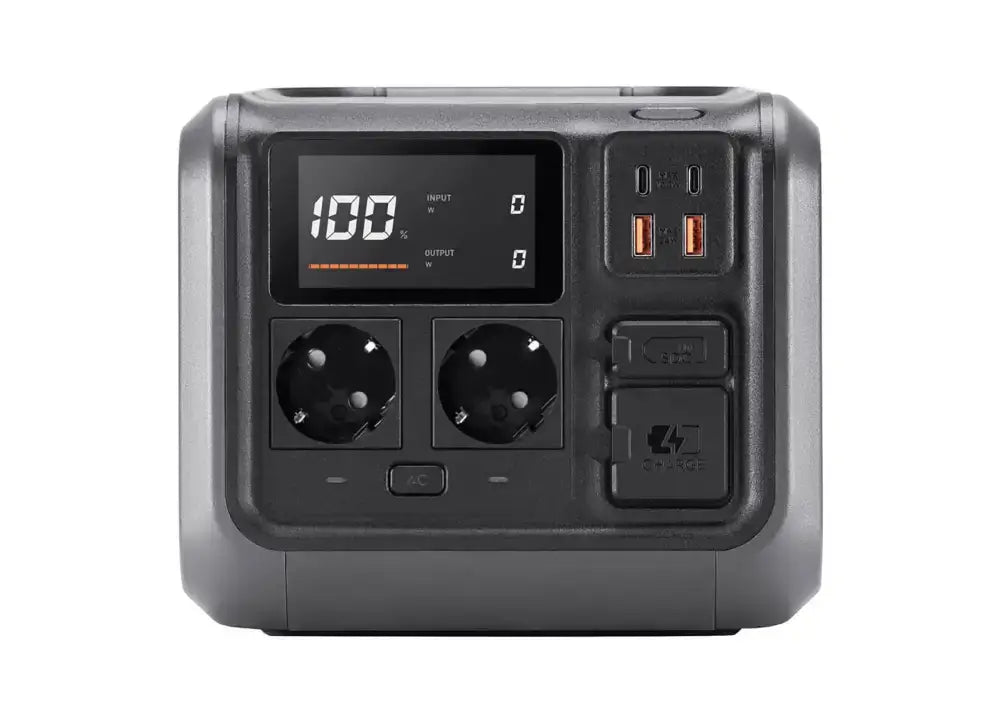

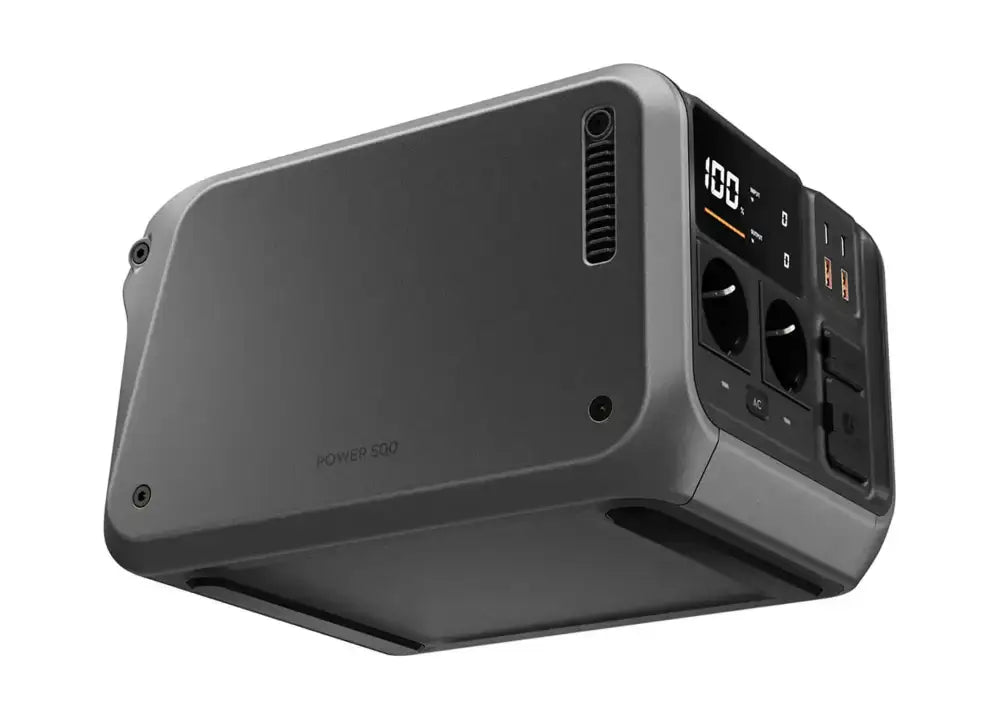

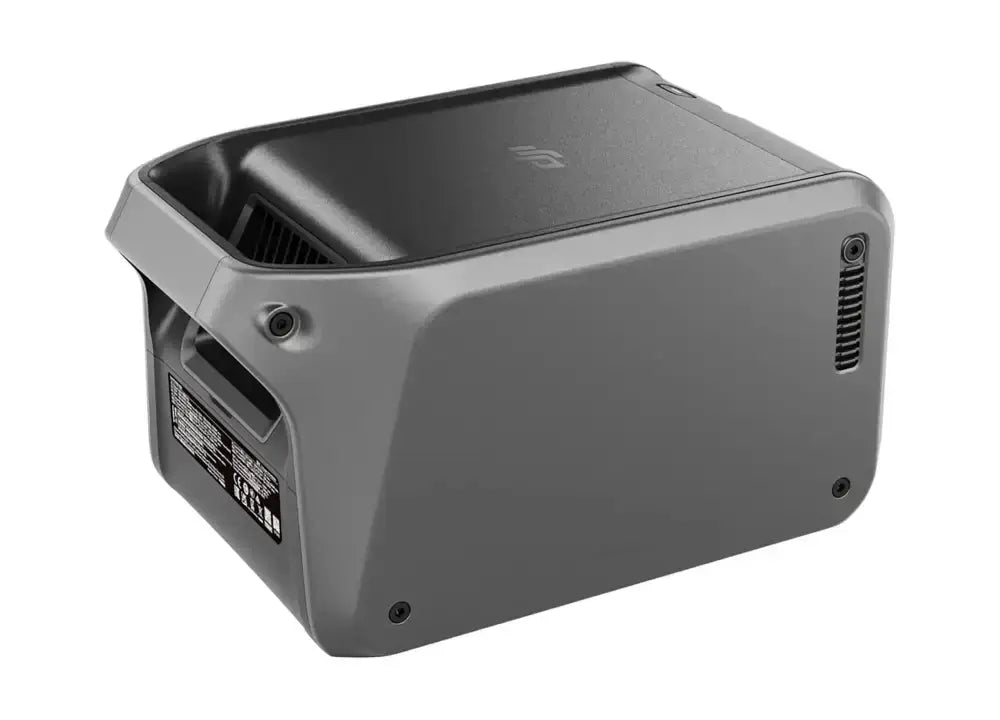

The compact and portable DJI Power 500 has a battery capacity of 512 Wh to provide a max output power of 1000 W. It can also fast charge DJI drone batteries to unleash your aerial content creation.

512Wh Capacity Charging Ability

Camping and Road Trips

• Mobile Phone - Approx. 28 times
• Camping Lantern - Approx. 16 times
• Projector - Approx. 4.7 hours
• Car Refrigerator - Approx. 9.7 hours
• Electric Fan - Approx. 4.7 hours

Content Creation

• Digital Camera - Approx. 28 times
• Laptop - Approx. 4 times
• Drone - Approx. 6 times
• Photography Lighting Equipment - Approx. 0.65 hours
• Speaker - Approx. 32 times

Fast Charges DJI Drones
With the aid of separately-sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function, and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation.

• Mavic 3 Series Intelligent Flight Battery - Approx. 32 mins Battery level from 10% to 95%
• DJI Air 3 Intelligent Flight Battery - Approx. 30 mins Battery level from 10% to 95%
• Inspire 3 TB51 Intelligent Flight Battery - Approx. 28 mins Battery level from 10% to 95%
• M30 TB30 Intelligent Flight Battery - Approx. 32 mins Battery level from 10% to 95%

Multiple Recharging Options
DJI Power 500 can be recharged in four ways: grid power, USB-C, solar power, and car power. Whether indoors or on the road, you can flexibly choose the recharging method that works for you.

Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, DJI Power 500 supports both 540W Fast Recharge Mode and 270W Standard Recharge Mode, with the quickest recharging time being 70 minutes for 100% battery. It can also charge to 80% in just 50 minutes.

USB-C Recharging
DJI Power 500 can be recharged through two 100W USB-C ports, for a total power of 200W input power, and it can be fully charged in approximately three Hours.

Solar Power
DJI Power 500 can be connected to solar panels through the DJI Power Solar Panel Adapter Module (MPPT) or DJI Power Car Power Outlet to SDC Power Cable, and recharged with environmentally friendly solar power. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm allows the solar panels to recharge DJI Power 500 in an optimized and efficient way.

Solar panels from DJI-certified brand Zignes are recommended. DJI Power 500 supports a max solar power input of 300 W, and it can be fully recharged by solar power in approx. 1.8 to 4 Hours.

Car Power
Easily supercharge any road trip. With the DJI Power Car Power Outlet to SDC Power Cable (12V/24V), you can recharge DJI Power 500 via car charger for a fully recharged unit in as little as six Hours.

Comprehensive Safety, Ultra-Quiet Operation

Safety Design

Safe and Secure, Inside and Out
Safety comes first at all times. From the body structure and cell chemistry to the system software, DJI Power 500 features a comprehensive safety design. It has passed 26 product test certifications from the Swiss third-party testing authority SGS, ensuring worry-free electrical usage.

Intelligent Battery Management System (BMS)
When the safety threshold of electricity usage is surpassed, the protective mechanism for supplying power and recharging will kick into action automatically. And once electricity supply returns to normal, DJI Power 500 will resume Operation.

LFP Cell
The LFP cell is safe and durable, and can achieve 4000 cycles, providing a lifespan of approximately 10 years, even with frequent use.

SGS Switzerland Authority Certification
Thanks to its comprehensive safety design, DJI Power 500 has gained the high-quality portable power station certification from SGS Switzerland, and received 26 product test certifications, including 2 product test verifications, 4 mechanical performance tests, 9 electrical performance tests, 3 environmental resistance tests, 5 noise-level tests, and 3 intelligent and efficient DC power-supplying and recharging Tests.

Safe and Reliable Power Usage

11 Temperature Sensors
11 temperature sensors on the device continually monitor heat dissipation, and the power station can function normally even in temperatures as high as 40° C (104° F).

Power Outage Protection
Ten fuses located throughout the power station provide circuit protection for each module. Even if there is a circuit abnormality, DJI Power 500 will respond quickly and safely.

UPS Mode, Seamless Power Continuity
If an electrical device is connected to a powered-on DJI Power 500 (via AC output port) and both are receiving grid power, DJI Power 500 defaults to UPS (Uninterruptible Power Supply) mode. In cases of sudden power outage, DJI Power 500 can start powering the connected device (or devices) within 0.02 seconds, ensuring continued operation.

Ultra-Quiet Operation
The noise level of DJI Power 500 is as low as 25 dB during recharging, lower than most household refrigerators, so there is no noise disturbance even in quiet environments.

Outlets for Multiple Scenarios

Ample Accessories

Extensive Ports, Expanded Applications

Dual USB-C Two-Way Ports (100W Max)
Dual 100W USB-C two-way ports support both power input and output, and support the PD 3.0 fast charging protocol, enabling efficient output and input. Both ports can simultaneously recharge DJI Power 500 at a maximum of 200 W, or provide power supply separately to devices like cameras, phones, and laptops at 100 W max.

Extensive Accessories
DJI Power 500 has dual two-way USB-C ports, dual AC output ports, dual USB-A ports, and one SDC Lite port. It is highly versatile to make power usage in various scenarios more convenient. It can connect to different types of solar panels, power cables, and adapter cables, meeting the needs of a variety of power supply and recharging options.

DJI Power Solar Panel Adapter Module (MPPT)
Can connect to one to three solar panels and recharge DJI Power 500 with solar power.

DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
Can connect to one solar panel to recharge DJI Power 500 via solar power. It can also recharge the DJI Power 500 via car charger.

Zignes 120W Solar Panel
When paired with the DJI-certified Zignes solar panels, DJI Power 500 can be recharged via solar power using the DJI Power Solar Panel Adapter Module (MPPT).

DJI Power SDC to Matrice 30 Series Fast Charge Cable
230W fast charge, charge a Matrice 30 battery from 10% to 95% in 32 mins.

DJI Power SDC to DJI Air 3 Fast Charge Cable
125W fast charge, charge an Air 3 battery from 10% to 95% in 30 mins.

DJI Power SDC to DJI Mavic 3 Series Fast Charge Cable
150W fast charge, charge a Mavic 3 series battery from 10% to 95% in 32 mins.

DJI Power SDC to DJI Inspire 3 Fast Charge Cable
200W fast charge, charge an Inspire 3 series battery from 10% to 95% in 28 mins.

DJI Power SDC to XT60 Power Cable (12 V)
With this cable, DJI Power 500 can achieve 12V DC output, suitable for connecting to model aircraft balance chargers or devices with XT60 connectors.

DJI Power SDC to Car Charger Plug Power Cable (12 V)
Using this cable, DJI Power 500 can charge car-powered devices with a car charger plug, such as a car refrigerator.

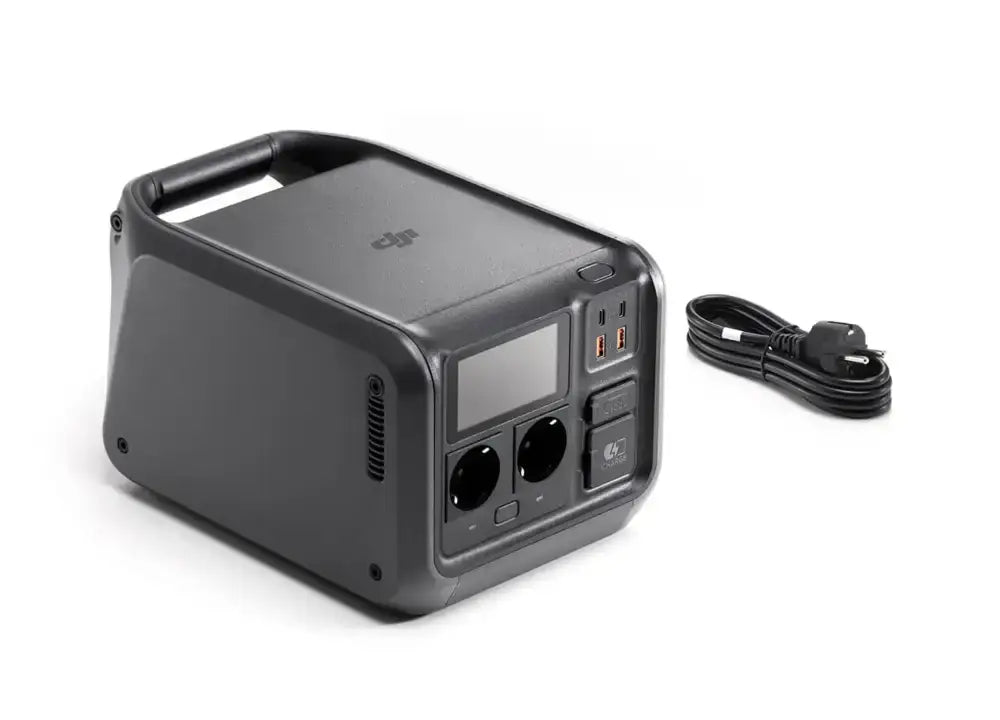

In the Box:
1x Power 500
1x AC Power Cable
