1 2

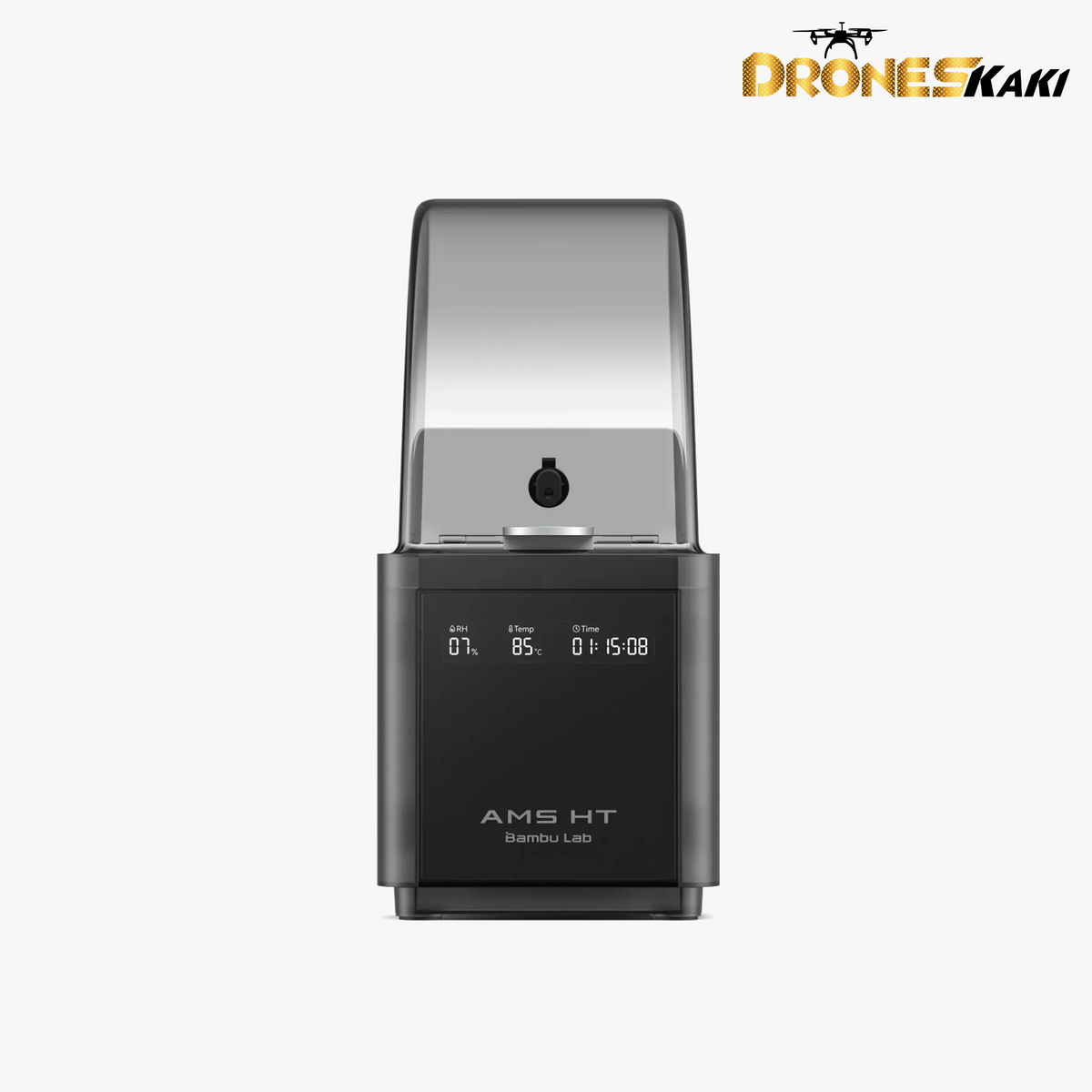

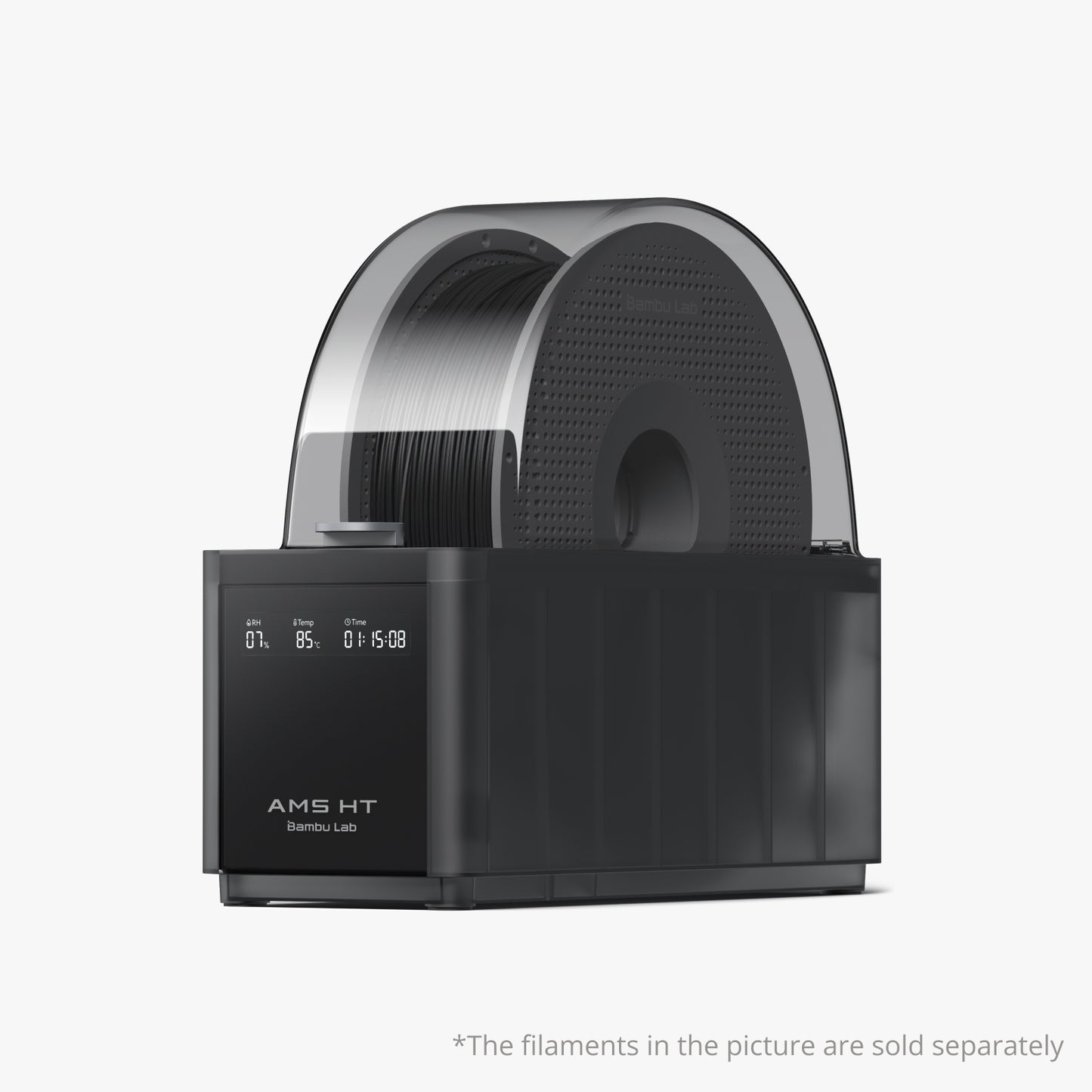

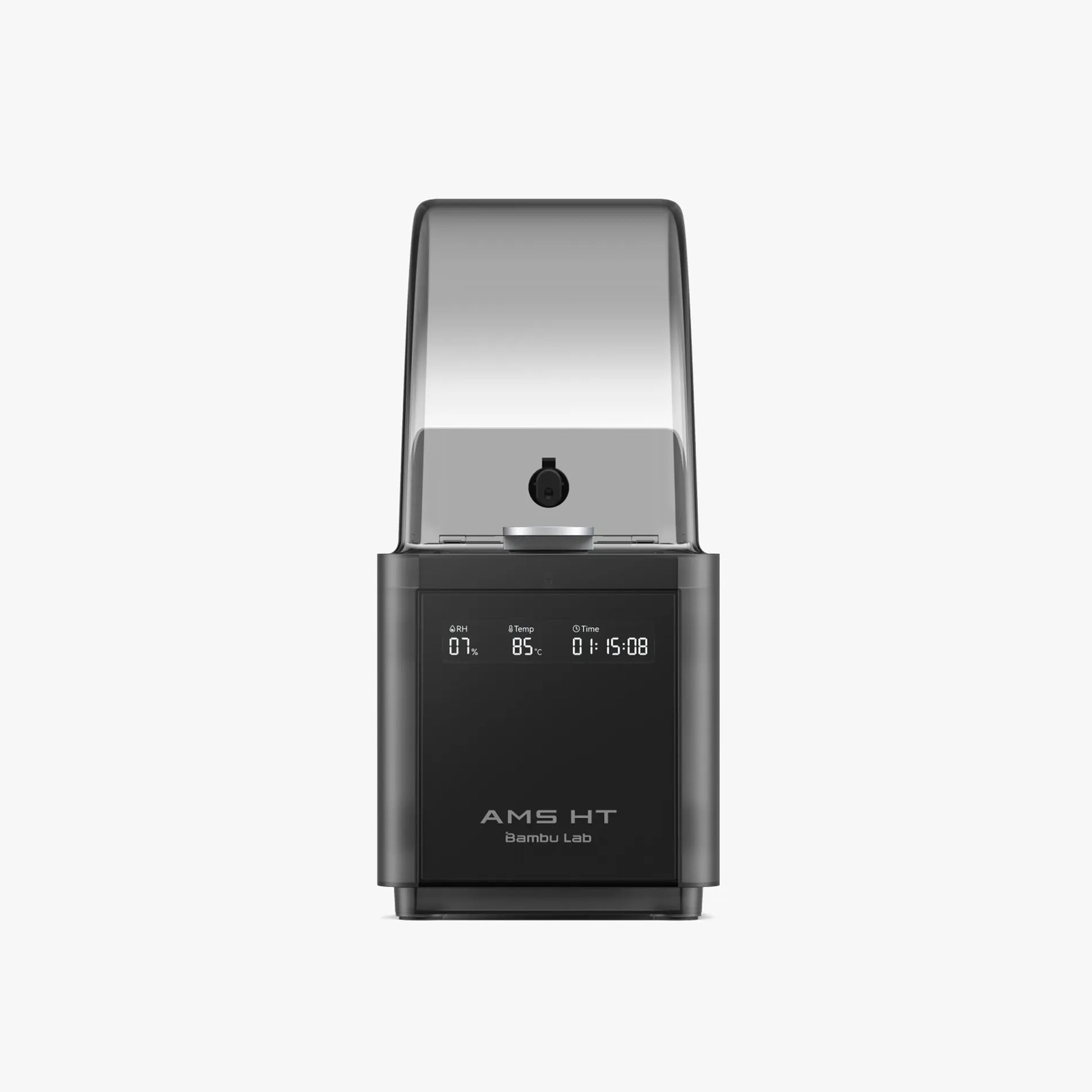

AMS HT

RM699.00
RM699.00 RM699.00
Sale Sold out
Shipping calculated at checkout.
Product Features
  • Active Air Vent 85°C Filament Drying
  • Air-tight Filament Storage
  • Up to 24-color/Multi-material Printing
  • Brushless Servo Feeding Motor
  • RFID Filament Sync



Important notice
  • The AMS requires specific accessory configurations for various Bambu Lab 3D printers.
  • All accessories mentioned in the description need to purchase separately.
  • See the Multiple AMS Units Connection Guide for detailed setup instructions.
Description
1. For A1 series Owner：
To connect AMS HT unit(s) to A1 series printer, an A1 series AMS Hub (SA013) is required.

A1 series printer can connect up to 4 AMS units(including AMS HT, AMS, AMS 2 Pro).
Note: AMS lite cannot be used in combination with other AMS units.

2. For X1/P1 series Owner：
To connect a single AMS HT unit to X1/P1 series printer, a Filament Buffer(SA003), a PTFE Tube Coupler(FAZ006), and a 4-pin Cable(CAB002-N) are required.
To connect multiple AMS HT units, an AMS Hub(SA002-N), a PTFE Tube Coupler(FAZ006), and a 4-pin Cable(CAB002-N) are required.

X1/P1 series printer can connect up to 4 AMS units(including AMS HT, AMS, AMS 2 Pro).

3. For P2S Owner：
To connect one or two AMS HT unit(s) to P2S, a P2S Filament Buffer (SA011) is required.
To connect more than two AMS HT units, a P2S Filament Buffer (SA011) and a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.

P2S printer can connect up to 4 AMS units(including AMS, AMS 2 Pro) and 4 AMS HT units.

4. For H2S Owner：
To connect more than one AMS HT units to H2S, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
To connect a single AMS HT unit, no extra accessory is required.

H2 series printer can connect up to 4 AMS units(including AMS, AMS 2 Pro) and 8 AMS HT units.

5. For H2D/H2C Owner：
To connect more than two AMS HT units to H2D/H2C, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required. For better performance, we recommend 4-in-1 PTFE Adapter II (SA014) for H2C.
To connect one or two AMS HT unit(s), no extra accessory is required.

H2 series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.

6. For X2D Owner：

Connect 1 or 2 AMS HT unit(s)
To connect one or two AMS HT unit(s), no extra accessory is required.
X2D series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.

Connect 3 or more AMS HT units
To connect 3 or more AMS 2 Pro units, a 4-in-1 PTFE Adapter(s) (FAZ013-N) is required.
X2D series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.


7. For A2L Owner：

Connect 1 AMS HT unit
To connect one AMS HT unit, no extra accessory is required.
A2L series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro and AMS HT) and 1 AMS lite.

Connect 2 or more AMS HT units
To connect more than one AMS HT units to A2L, 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
A2L series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro and AMS HT) and 1 AMS lite.
