CHASING Control Console

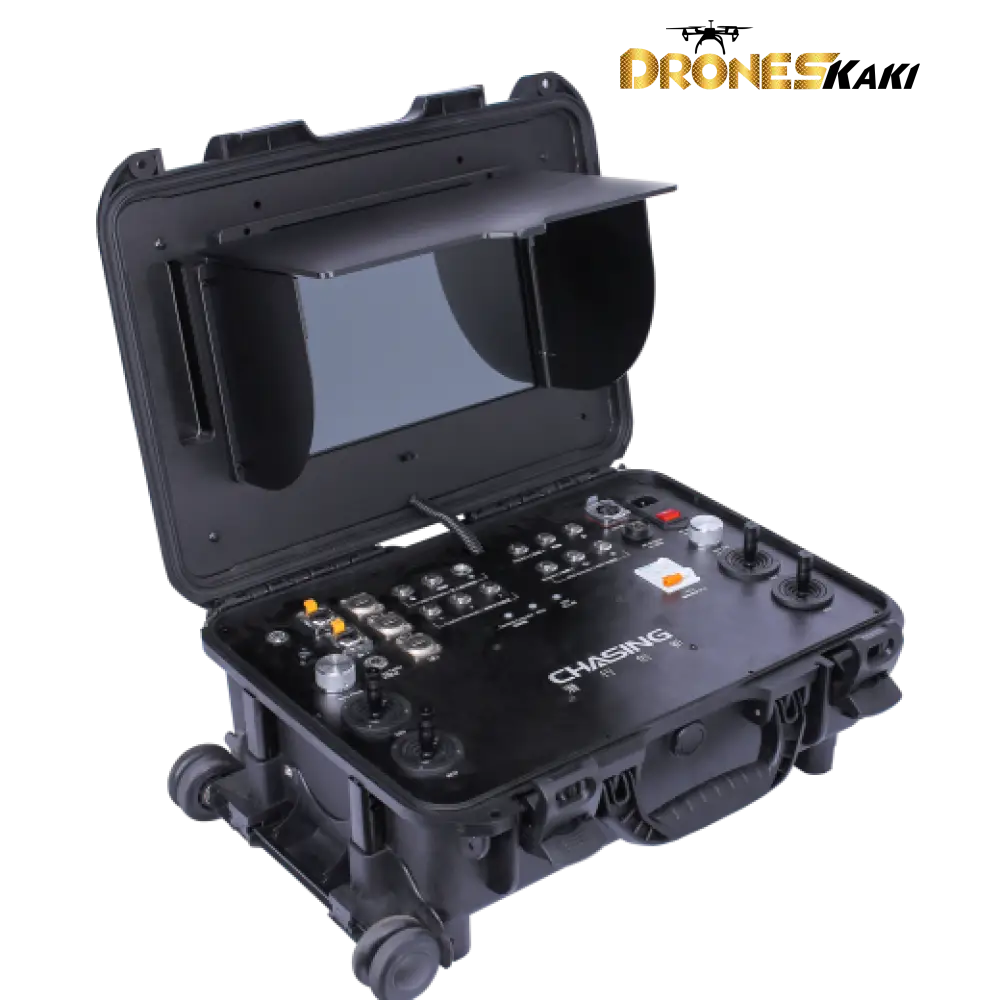

CHASING Control Console is a professional underwater drone control platform designed for high-end professional users. It is used to control the ROV, USV, AC Power, USBL, Grabber Claw, Multibeam Sonar, External Light and other professional accessories, and its ergonomic design makes underwater work more professional and convenient.

Viewable in Direct Sunlight

The control console has a 13-inch 1000cd/m2 high-brightness display, which makes the images on the screen clear and viewable under sunlight.

Ergonomic Design Improves the Control Experience

The console is equipped with a variety of switches, buttons, and interfaces, with four height-adjustable brackets, which can be adapted to various complex terrains to bring you a more professional and relaxed working experience.

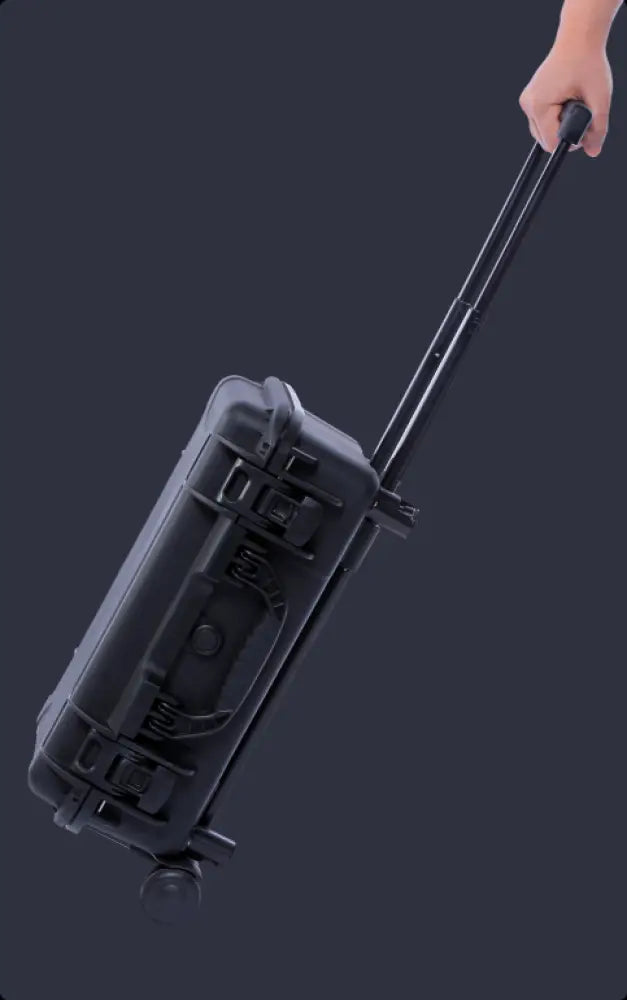

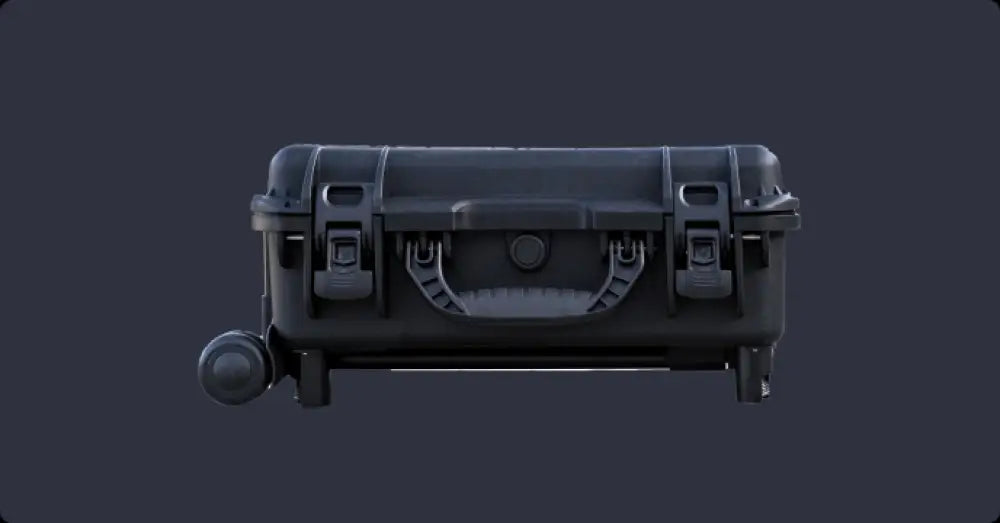

Foldable Suitcase Shape, Easy to Carry

Its exterior is designed with two rollers similar to those of a suitcase, and it is easy to carry after folding. The aluminum alloy material is more sturdy and durable.



Specifications

• Size:19" x 14.8" x 7" (484 x 375 x 178 mm)
• Weight:11 kg
• Working Temperature:-10℃~45℃
• Screen Size:13.3 Inch
• Resolution:1920×1080
• Display Brightness:1000 cd/㎡
• Interface:RJ45 × 2 , USB 2.0 Host × 2 , QC 3.0 USB × 1
• AC Input:200 V ~ 240 V
• AC Output:220V
• Runtime:8 hours
• Battery:226.8 Wh
• Charge Time:4.5 Hours with 3A Charger
